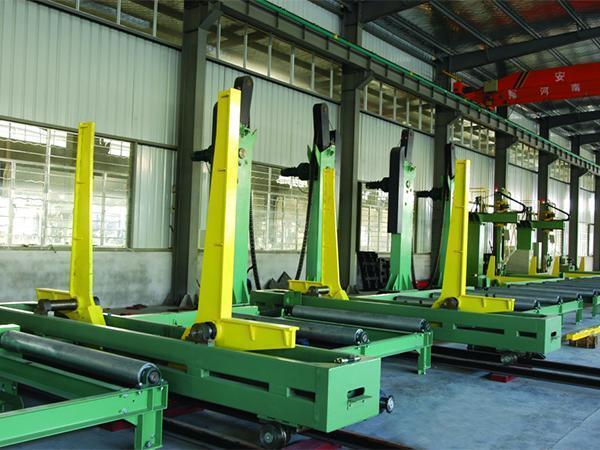

180 Degree Steel Beam Overturn Equipment

On the H beam heavy steel production line. The flange slab should be straightened after the welding. The 180 degree steel beam overturn equipment can carry out H beam overturn after straightening of one flange slab, so that another flange slab can be straightened.

Maximum workpiece weight 20 t
Workpiece dimensions H 1500 x W 800 mm
Overturn angle 180°
Transport speed 2100 mm/min
Single equipment power 0.2Kw
Rail spacing 670mm
Standard configuration 2 sets group
Hydraulic working pressure 16 MPa
Rail 22kg/m, 6mx4

1. By adopting the 180 degree steel beam overturn equipment, we can avoid the risk during the manual overturn, reduce the labor intensity and improve working efficiency.
2. The overturn arm of the 180 degree steel beam overturn equipment is driven by hydraulic cylinder. And this machine has moving function that it can carry out H beam overturn and movement at the same time. It can carry out H beam overturn according to the demand. And it is safe and reliable; the operation is simple.

Jinfeng introduction
Jinfeng Welding & Cutting Machinery Manufacture Co., Ltd hires senior engineers from ESAB to lead mechanical department, electrical department and software department. There is 80 people in the team in total. They carry out development and design of various structural steel H beam production lines, so that we have technical guarantee.

Jinfeng has strong production capacity: we have 13 imported CNC machining centers, 3 4mx12m large machining centers, so that the annual output of various structural steel production line is 100.

The sales team is stable. All the members of the sales team have more than 10 years of experience in service, so that they can provide customers with various consultation and services rapidly, in time and expertly. Our executive vice president leads an after-sales service team of 30 employees, so that they can provide 24-hour after-sales service all year round.
