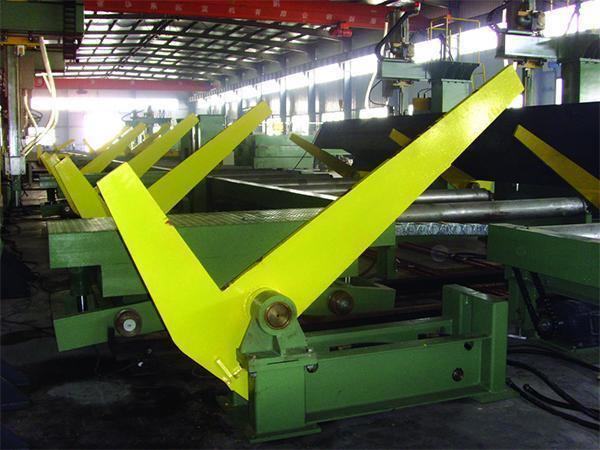

45 Degree Steel Beam Tilting Equipment

The 45 degree steel beam tilting equipment can tilt the horizontal steel H beam for 45 degrees. And it can support the tilting steel H beam to complete the fillet welding in the flat position.

Maximum workpiece weight 5t/equipment
Workpiece dimensions H 1500 x W 800 mm
Tilting angle 45°
Hydraulic working pressure 16 MPa
Standard configuration 4 sets
Hydraulic pressure station 1 set

One set of tilting equipment consists of more than 2 tilting devices. It can carry out hydraulic synchronous tilting by flow distributing and collecting valve so that the tilting is stable, safe and reliable.

Jinfeng introduction
Jinfeng Welding & Cutting Machinery Manufacture Co., Ltd hires senior engineers from ESAB to lead mechanical department, electrical department and software department. There is 80 people in the team in total. They carry out development and design of various structural steel H beam production lines, so that we have technical guarantee.

Jinfeng has strong production capacity: we have 13 imported CNC machining centers, 3 4mx12m large machining centers, so that the annual output of various large equipment is 1000.

The sales team is stable. All the members of the sales team have more than 10 years of experience in service, so that they can provide customers with various consultation and services rapidly, in time and expertly. Our executive vice president leads an after-sales service team of 30 employees, so that they can provide 24-hour after-sales service all year round.
